Specification

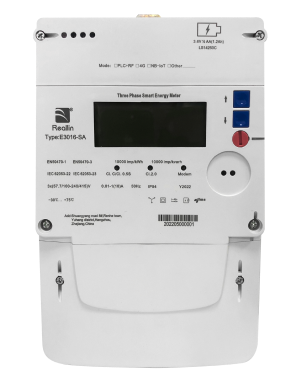

E3016-SA
交流产品-智能电能表：E3016-SA
Active/Reactive/Apparent Energy Measurement. Various Extended Communication Technology Capability. Wide Operating Voltage Range. Smart Meter Features (Interoperability,Remote Communication,Load Control). Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing). Provide Daily,Monthly,Load And PQ Profiles For Billing And Analysis. MID& IEC Certificates. High Degree Of Accuracy,Type(3P3W/3P4W) Is Configurable.
主要功能
Main Features
Active/Reactive/Apparent Energy Measurement
Various Extended Communication Technology Capability
Wide Operating Voltage Range
Smart Meter Features (Interoperability,Remote Communication,Load Control)
Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)
Provide Daily,Monthly,Load And PQ Profiles For Billing And Analysis
MID& IEC Certificates
High Degree Of Accuracy,Type(3P3W/3P4W) Is Configurable
参数明细
Type
Three Phase Four Wire CT/CT-VT Operated Meter
Standards
EN 50470-1, EN 50470-3, IEC 62052-11, IEC 62053-22/23,
IEC62056-21, IEC62056-61, IEC62059-31
IEC62056-21, IEC62056-61, IEC62059-31
Voltage
Rated voltage Un
Voltage range
57.7V~240V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.01A
1A, 1.5A
6A or 10A
0.1%Ib
Rated Frequency Fn
50/60Hz
Accuracy
Class C/0.5S for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
10000imp/kWh;10000imp/kvarh
10000imp/kWh;10000imp/kvarh
Environment
Temperature range
Operation: -25~75℃
Storage: -40~85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜1VA
LCD Display
8 digits with configurable decimal place, backlight supported
Backup Power Supply
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy according to IEC62054-21
Communication Interface
2*RS485(RJ45 type) with power output 12V,max 5W
1*Optical port
1*Module compartment (Cellular,RF,PLC or LoRa)
1*Optical port
1*Module compartment (Cellular,RF,PLC or LoRa)
Communication Protocol
DLMS/COSEM, Support data transportation encryption (Suite 0)
I/O Interface
1*Signal Input
2*Signal Outputs
1*Control Outputs
2*Signal Outputs
1*Control Outputs
Weight Of Meter
About 1.4kg

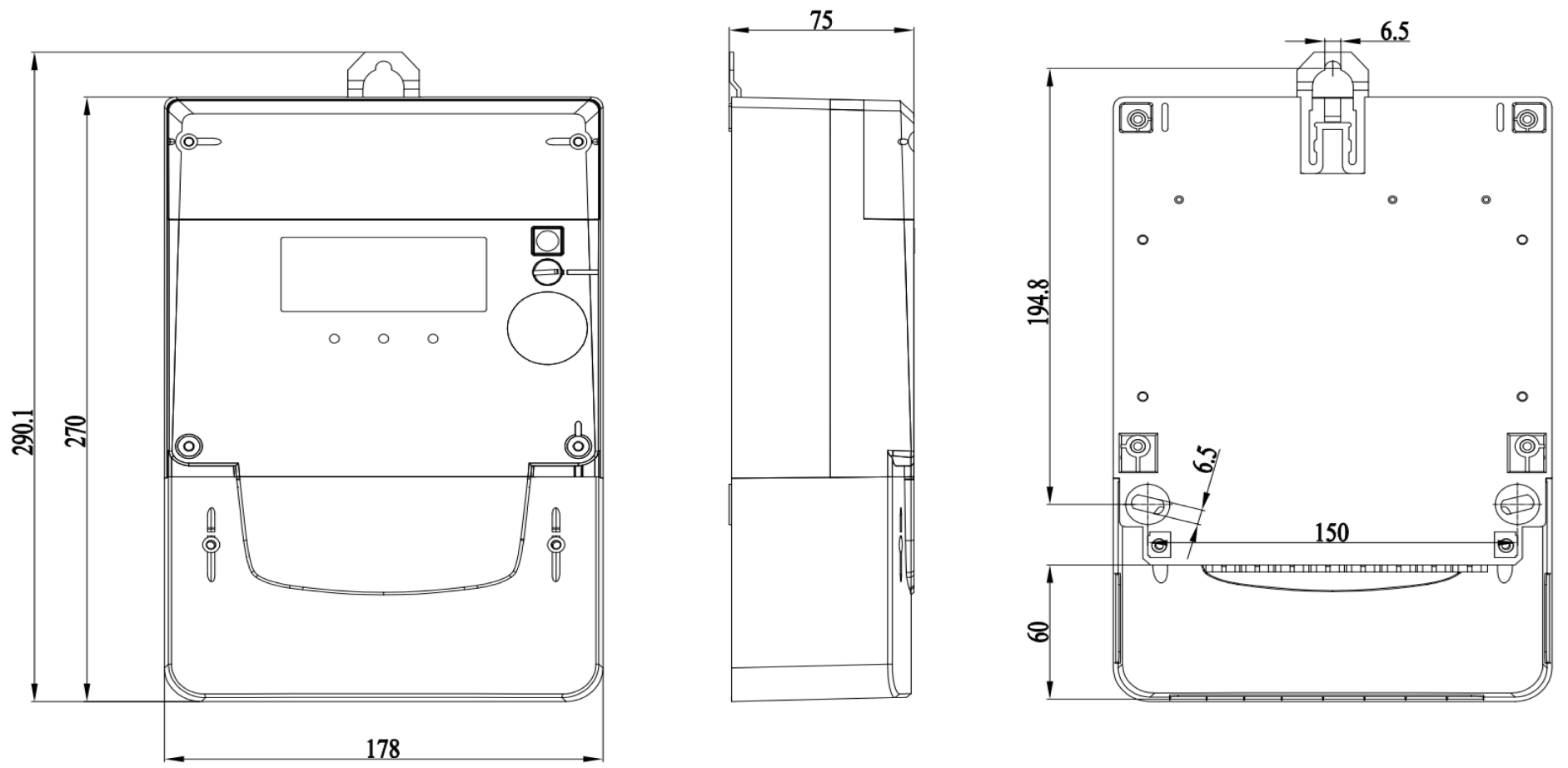

Dimension(LxWxD)
290.1 × 178.0 ×75.0mm
