Specification

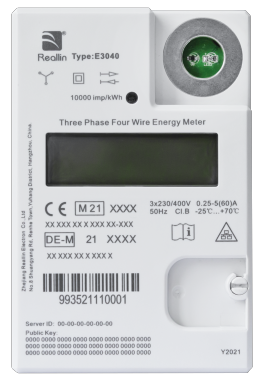

E3040
交流产品-普通电能表：E3040
Active Energy Measurement. Four Measurement Modes Configurable . Maximum Communication Speed Up To 921.6kbps. Anti-Tampering Capability (Abnormality Detection, Sealable Casing). Provide Daily, Monthly, Yearly History Data For Billing. Easy For Installation On The Third Party Base.
主要功能
Active Energy Measurement
Four Measurement Modes Configurable
Maximum Communication Speed Up To 921.6kbps
Anti-Tampering Capability (Abnormality Detection, Sealable Casing)
Provide Daily, Monthly, Yearly History Data For Billing
Easy For Installation On The Third Party Base
参数明细
Type
Three Phase Four Wire Energy Meter
Standards
EN 50470-1, EN 50470-3, EN 62052-31:2016
Voltage
Rated voltage Un
Voltage range
3x230/400V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
60A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class B for active
Pulsating Indicator
Pulsating (meter constant)
LED
10000imp/kWh
10000imp/kWh
Environment
Temperature range
Operation: -25~70℃
Storage:-40~85℃
Protection Degree
IP 51
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
Double line display, 6 digits for energy display
Communication Interface
1*Infor port
1*LMN port
Internal Bluetooth(optional)
1*LMN port
Internal Bluetooth(optional)
Communication Protocol
SML
Weight Of Meter
About 0.4kg

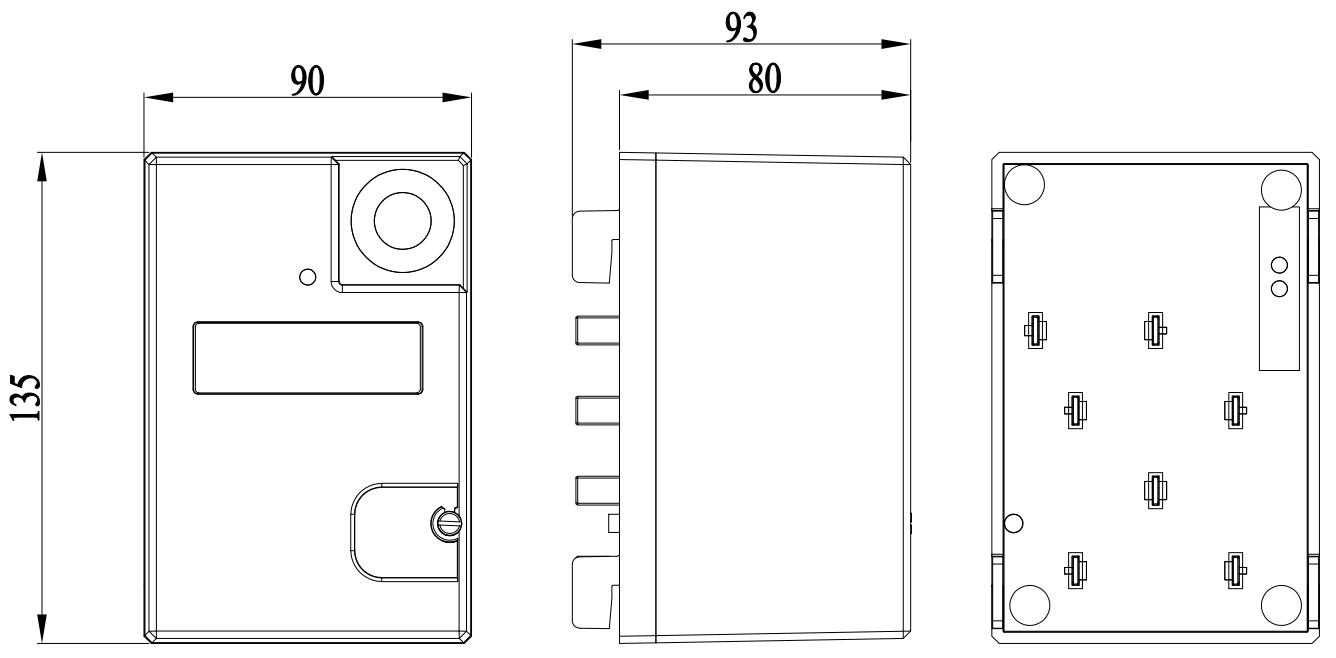

Dimension(LxWxD)
135.0 × 90.0 × 93.0mm
