Specification
D3034

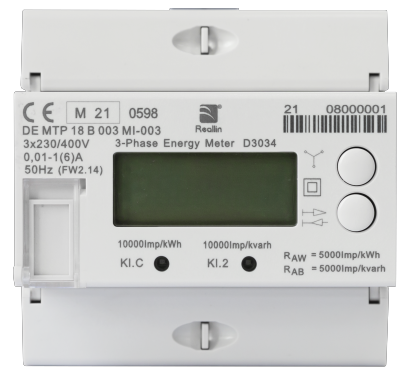

交流产品-导轨式安装电能表：D3034
Active/Reactive Energy Measurement. 5TE Wide. Modbus Interface. Anti-Tampering Capability(Abnormality Detection, Event Logs, Sealable Casing). Provide Monthly, Load, And PQ Profiles For Billing And Analysis. MID Certificate.
主要功能
Active/Reactive Energy Measurement
5TE Wide
Modbus Interface
Anti-Tampering Capability(Abnormality Detection, Event Logs, Sealable Casing)
Provide Monthly, Load, And PQ Profiles For Billing And Analysis
MID Certificate
参数明细
Type
Three Phase Four Wire DIN Rail CT Meter
Standards
EN 50470-1, EN 50470-3, IEC 62053-23
Voltage
Rated voltage Un
Voltage range
3x230/400V
80%Un~120%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.01A
1A
6A
0.1%Ib
Rated Frequency Fn
50Hz
Accuracy
Class C for active, Class 2 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED and S0 interface
10000imp/kWh, 10000imp/kvarh, configurable for S0 interface
10000imp/kWh, 10000imp/kvarh, configurable for S0 interface
Environment
Temperature range
Operation: -25~55℃
Storage: -40~70℃
Protection Degree
IP 51 in protective enclosure
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜1VA
LCD Display
8 digits with configurable decimal place, backlight supported
Communication Interface
RS485 with screw type, maximum upto 38400bps
I/O Interface
1*Relay output
4*Output
4*Output
Weight Of Meter
About 0.3kg

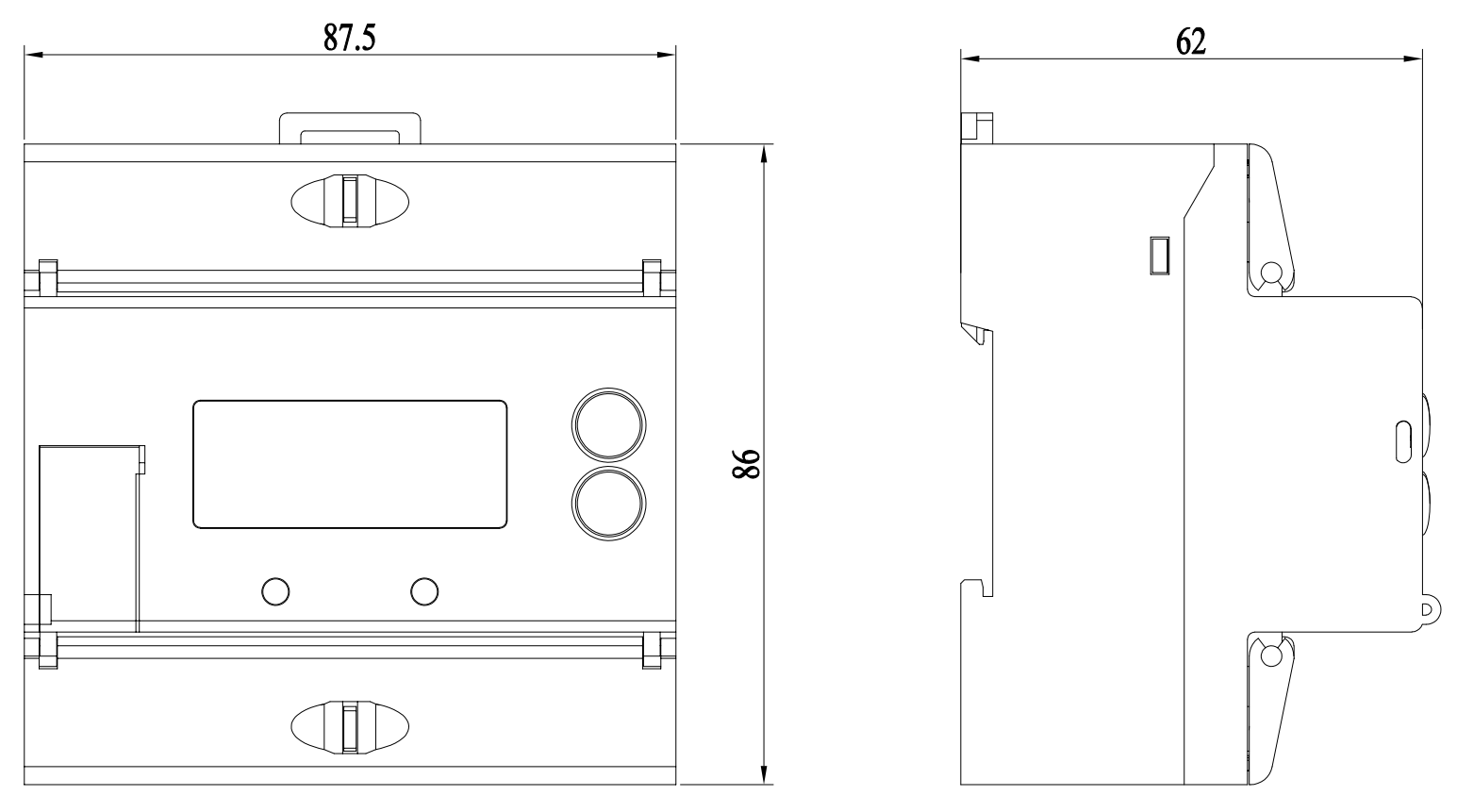

Dimension(LxWxD)
86.0 x 87.5 x 62.0mm
