Type

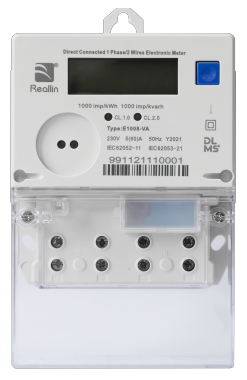

Single Phase Two Wire Electronic Meter
交流产品-普通电能表：E1008-VA
Active/Reactive Energy Measurement.Anti-Tampering Capability (Abnormality Detection, Event Logs, Ultrasonic Welding Casing).Provide Daily,Monthly And Load Profiles For Billing And Analysis.BS Standard Lifting Type Terminal Arrangement.IEC Test Certificates
主要功能
Active/Reactive Energy Measurement
Anti-Tampering Capability (Abnormality Detection, Event Logs, Ultrasonic Welding Casing)
Provide Daily,Monthly And Load Profiles For Billing And Analysis
BS Standard Lifting Type Terminal Arrangement
IEC Test Certificates
参数明细
Specificatio E1008-VA
Standards
IEC 62052-11, IEC 62053-21/23,
IEC62056-21, IEC62056-61, IEC62059-31-1
Voltage
Rated voltage Un
Voltage range
230V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
100A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class1.0 for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh;1000imp/kvarh
1000imp/kWh;1000imp/kvarh
Environment
Temperature range
Operation: -25~70℃
Storage: -40~85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
8 digits with configurable decimal place, backlight supported
Backup Power Supply
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy according to IEC62054-21
Communication Interface
1*Optical port
1*RS485(Screw type)
1*RS485(Screw type)
Communication Protocol
DLMS/COSEM, Support data transportation encryption (Suite 0)
Weight Of Meter
About 0.5kg

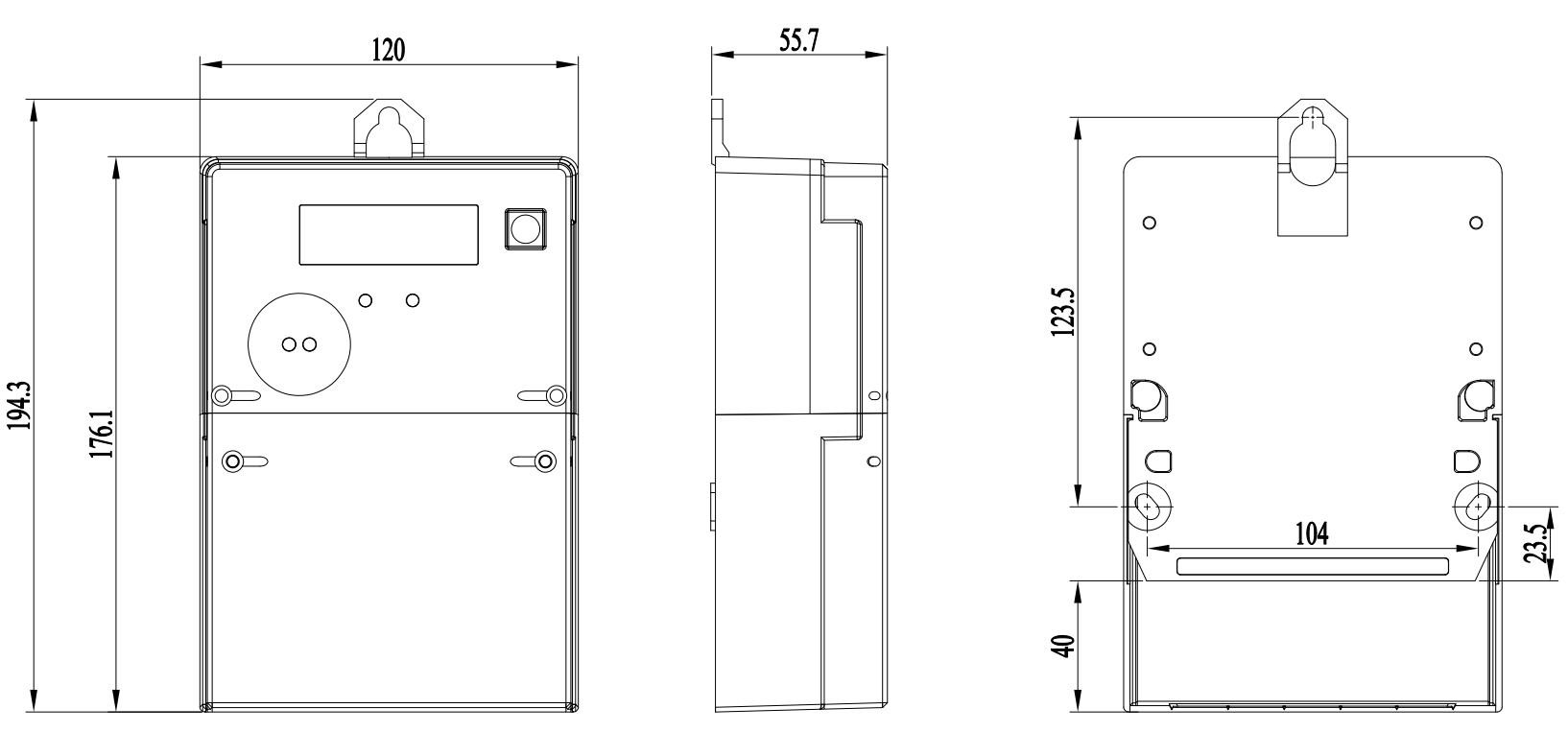

Dimension(LxWxD)
194.3 × 120.0 × 55.7mm
