Specification

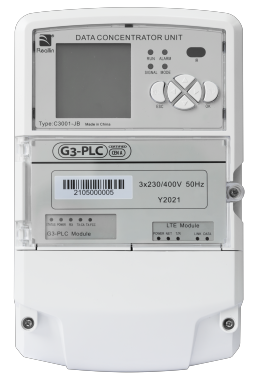

C3001
集中器：C3001
Support Communication With 1000 Meters For PLC Communication Technology. Support Synchronization Of The RTC Of Meters and DCU. Support Records All The Meter's Important Events. On-demand Meter Reading and Writing By HES. Support TCP/IP Server and Client Mode. Configurable For Scheduled Task. Support DCU Firmware Upgrade. Support Meter Firmware Upgrade. Automatically Collect Load Profile. Automatically Collect Billing. Support Config Local/Remote.
海外产品热线：0571-89029105-826
主要功能
Support Communication With 1000 Meters For PLC Communication Technology
Support Synchronization Of The RTC Of Meters and DCU
Support Records All The Meter's Important Events
On-demand Meter Reading and Writing By HES
Configurable For Scheduled Task
Support DCU Firmware Upgrade
Support Meter Firmware Upgrade
Automatically Collect Load Profile
Automatically Collect Billing
Support Config Local/Remote
参数明细
Type
Data Concentrator
Standards
IEC 62056-53, IEC 62056-61, IEC 62056-62
Voltage
Rated voltage Un
Voltage range
3x230/400V
80%Un 115%Un
Rated Frequency Fn
Frequency range
50Hz
0.98 1.02 fn
0.98 1.02 fn
Typical Power Consumption
＜10W
Environment
Temperature range
Humidity
Barometric pressure
Operation: -25 70℃
Storage: -40 80℃
≤100%, and altitude up to 4,000m
63.0kPa～108.0kPa
Ethernet
10M/100M
CPU
IMX6ULL(Cortex-A7)
Memory
512M SDRAM ,4G FLASH
Software Platform
Linux 4.1.15
RTC Accuracy
≤±1s/day
Down-link Communication
Replaceable, Mesh RF/G3 PLC/ Prime PLC/ FSK PLC/ RS485...
Up-link Communication
LTE(4G) module
Local Communication
PS2-RS232
TCP on Ethernet (LAN)
TCP on Ethernet (LAN)
Protection Degree
IP51
Class Of Protection
II
Material
Fiber-glass reinforced Polycarbonate
(flame resistant EN 62053-21, recyclable)
(flame resistant EN 62053-21, recyclable)
Weight
About 1.7kg

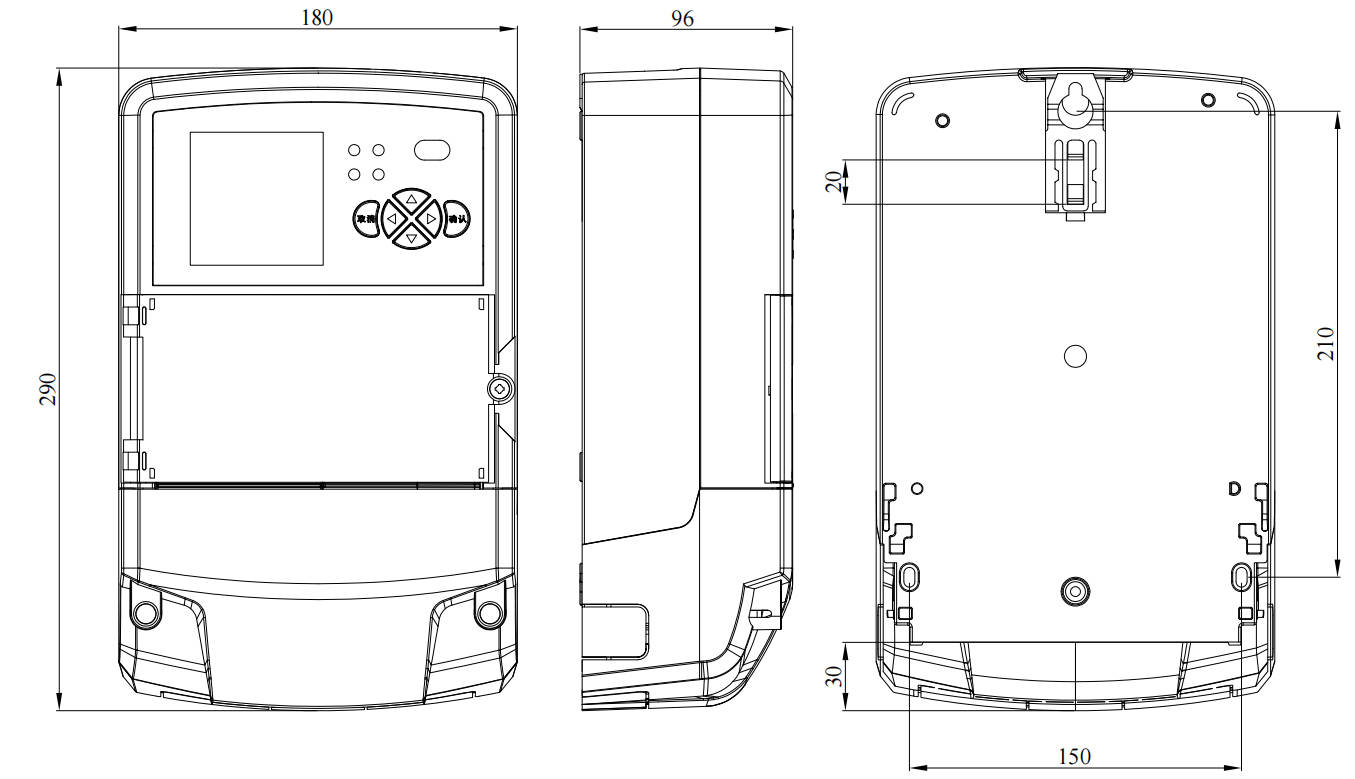

Dimension(LxWxD)
290.0 x 180.0 x 96.0mm
