Specification

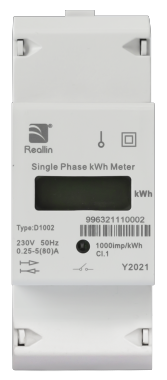

D1002
交流产品-导轨式安装电能表：D1002
Active Energy Measurement. Bidirectional Energy Directions. 2TE Wide. Modbus Interface. Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing). Provide Monthly, Load Profiles For Billing And Analysis. Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications.
主要功能
Active Energy Measurement
Bidirectional Energy Directions
2TE Wide
Modbus Interface
Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)
Provide Monthly, Load Profiles For Billing And Analysis
Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications
参数明细
Type
Single Phase Two Wire DIN Rail Meter
Standards
IEC 62052-11, IEC 62053-21
Voltage
Rated voltage Un
Voltage range
230V
80%Un 115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
80A/100A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class 1.0 for Active
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh
1000imp/kWh
Environment
Temperature range
Operation: -25 70℃
Storage: -40 85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
6 digits
Backup Power Supply
Internal super capacitor
RTC
Provides RTC with clock accuracy accordingly to IEC62054-21
Communication Interface
RS485 with screw type
I/O Interface
1*Output
Load Control
Suitable for 80A type
Built-in type latching relay
Maximum 250V,90A
Built-in type latching relay
Maximum 250V,90A
Weight Of Meter
About 0.2kg

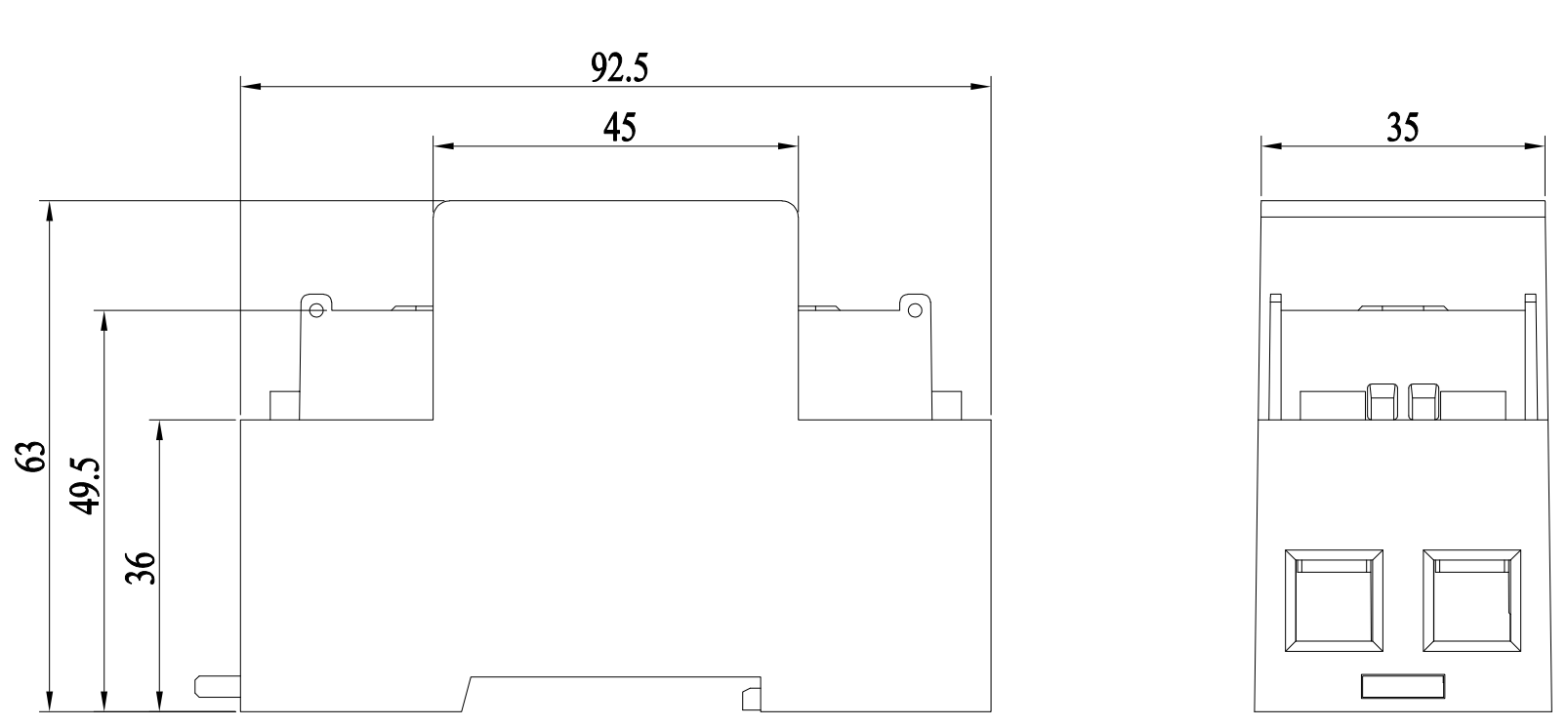

Dimension(LxWxD)
92.5 x 35.0 x 63.0mm
