Specification

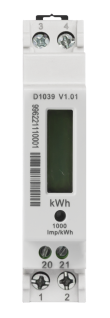

D1039
交流产品-导轨式安装电能表：D1039
Active Energy Measurement . Single Energy Direction. 1TE Wide. Modbus Interface. Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications. MID Certificate.
主要功能
Active Energy Measurement
Single Energy Direction
1TE Wide
Modbus Interface
Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications
MID Certificate
参数明细
Type
Single Phase Two Wire DIN Rail Meter
Standards
EN 50470-1, EN 50470-3
Voltage
Rated voltage Un
Voltage range
230V
80%Un 115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.2A
5A
80A/100A
0.4%Ib
Rated Frequency Fn
50Hz
Accuracy
Class B for Active
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh
1000imp/kWh
Environment
Temperature range
Operation: -25 55℃
Storage: -40 75℃
Protection Degree
IP 51 in protective enclosure
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
6 digits
Communication Interface
RS485 with screw type(optional)
I/O Interface
1 Output port(optional)
Weight Of Meter
About 0.1kg
Dimension(LxWxD)
86.0 x 18.5 x 62.0mm
