Specification
D1001

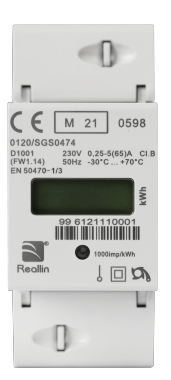

交流产品-导轨式安装电能表：D1001
Single Phase Two Wire DIN Rail Meter. Active Energy Measurement. Single Energy Direction. 2TE Wide. Modbus Interface. Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications MID & IEC Certificates
主要功能
Active Energy Measurement
Single Energy Direction
2TE Wide
Modbus Interface
Suitable For AC E-mobility Charging Stations & Any Sub-billing Applications
MID & IEC Certificates
参数明细
Type
Single Phase Two Wire DIN Rail Meter
Standards
EN 50470-1, EN 50470-3, IEC 62052-11, IEC 62053-21
Voltage
Rated voltage Un
Voltage range
230V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.25A
5A
65A
0.4%Ib
Rated Frequency Fn
50/60Hz
Accuracy
Class B/1.0 for active
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh
1000imp/kWh
Environment
Temperature range
Operation: -30~70℃
Storage: -40~85℃
Protection Degree
IP 51 in protective enclosure
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
6 digits
Communication Interface
RS485 with screw type, maximum upto 38400bps
Weight Of Meter
About 0.1kg

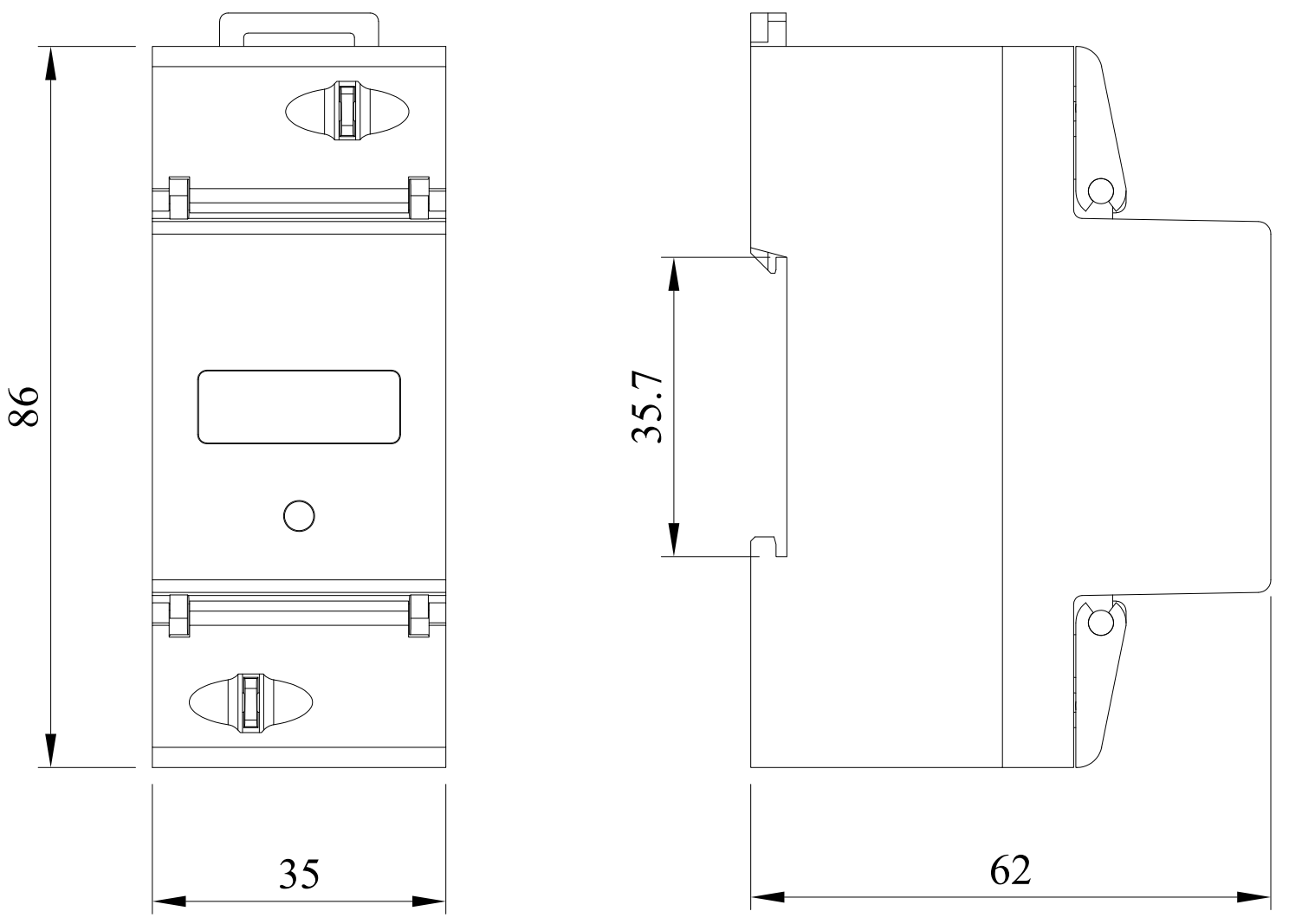

Dimension(LxWxD)
86.0 x 35.0 x 62.0mm
