Specification

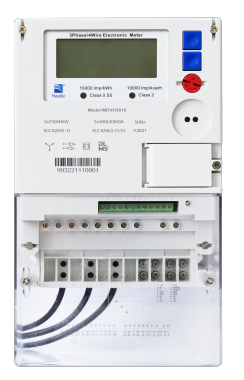

MDVH3016
交流产品-普通电能表：MDVH3016
Wide Measuring Current Range(1A -3000A) By Rogoswki Current Sensors. More Cost-efficient And Easier Way For Installation . Active/Reactive Energy Measurement . Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing). Provide Daily,Monthly And Load Profiles For Billing And Analysis. Expandable With External Module Connection. IEC& High Durability Test Certificates.
主要功能
Wide Measuring Current Range(1A -3000A) By Rogoswki Current Sensors
More Cost-efficient And Easier Way For Installation
Active/Reactive Energy Measurement
Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)
Provide Daily,Monthly And Load Profiles For Billing And Analysis
Expandable With External Module Connection
IEC& High Durability Test Certificates
参数明细
Type
Three Phase Rogowski Electronic Meter
Standards
IEC 62052-11, IEC 62053-21/23, IEC62056-21, IEC62056-61,
IEC62059-32-1
IEC62059-32-1
Voltage
Rated voltage Un
Voltage range
230V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
3A
300A
3000A
1A
Rated Frequency Fn
50Hz
Accuracy
Class 0.5S for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
25imp/kWh;25imp/kvarh
25imp/kWh;25imp/kvarh
Environment
Temperature range
Operation: -25~70℃
Storage:-40~85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜4VA
LCD Display
13 digits with configurable decimal place, backlight supported
Backup Power Supply
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy according to IEC62054-21
Communication Interface
1*RS485(RJ45 type) with power output 9V(300mA).
1*RS232(RJ45 type) with power output 9V(300mA).
1*Optical port
1*RS232(RJ45 type) with power output 9V(300mA).
1*Optical port
Communication Protocol
DLMS/COSEM
Auxiliary Supply Facility
Support Auxiliary supply facility with AC voltage(57.7-240V) or
DC voltage(60-150V)
DC voltage(60-150V)
I/O Interface
5*Signal Inputs
5*Signal Outputs
2*Control Outputs
2*Control Inputs
5*Signal Outputs
2*Control Outputs
2*Control Inputs
Weight Of Meter
About 2.1kg

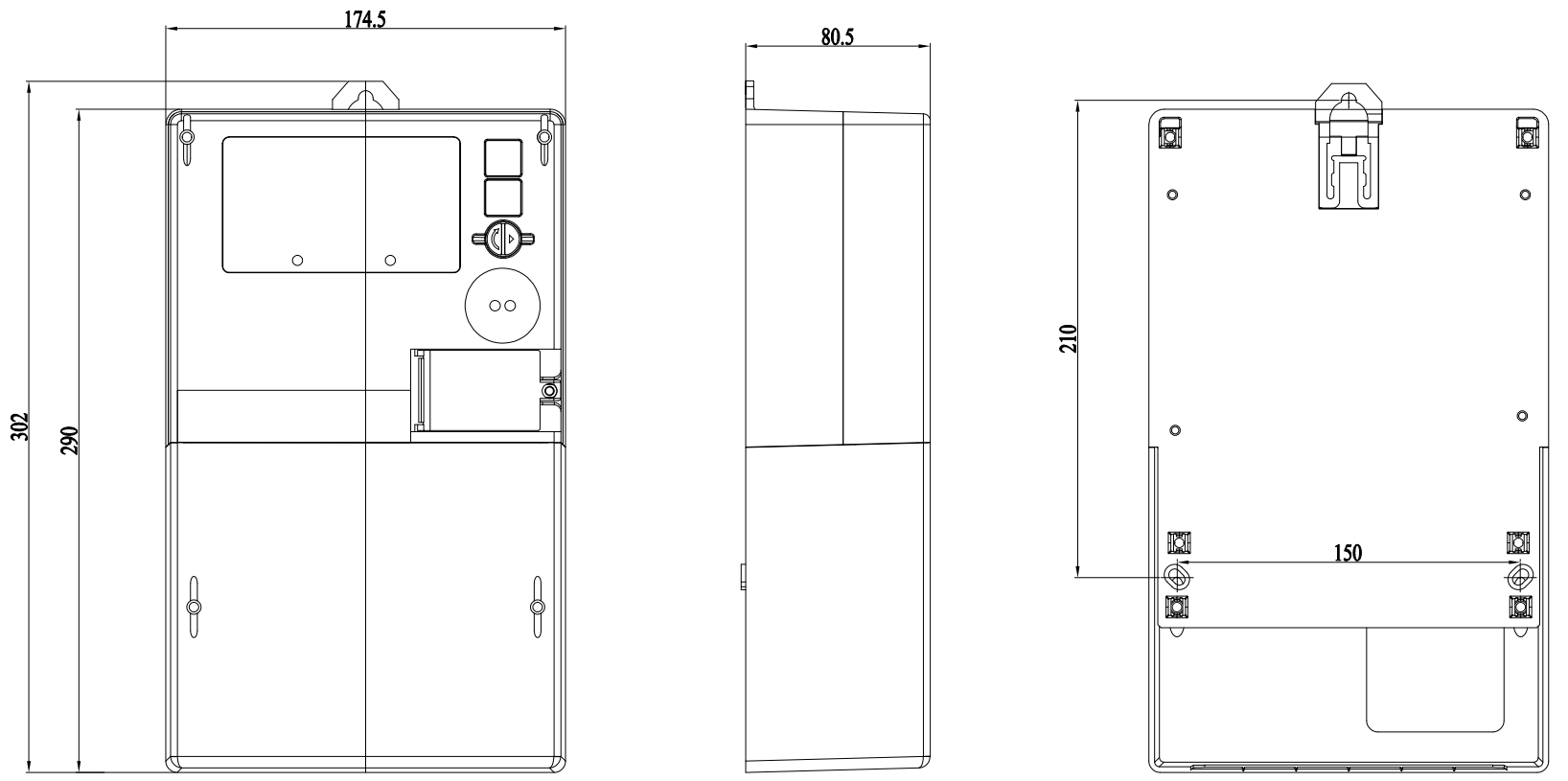

Dimension(LxWxD)
302.0 × 174.5 × 80.5mm
