Specification
E3016-SE
交流产品-高精度电能表：E3016-SE
Active/Reactive/Apparent Energy Measurement. Wide Operating Voltage Range. Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing). Provide Daily,Monthly, Load Profiles And THD Value For Billing And Analysis. Expandable With External Module Connection. MID& IEC& High Durability Test Certificates. High Degree Of Accuracy,Type(3P3W/3P4W) Is Configurable.
主要功能
Active/Reactive/Apparent Energy Measurement
Wide Operating Voltage Range
Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)
Provide Daily,Monthly, Load Profiles And THD Value For Billing And Analysis
Expandable With External Module Connection
MID& IEC& High Durability Test Certificates
High Degree Of Accuracy,Type(3P3W/3P4W) Is Configurable
参数明细
Type
Three Phase Four Wire CT/CT-VT Operated Meter
Standards
EN 50470-1, EN 50470-3, IEC 62052-11, IEC 62053-22/23,
IEC62056-21, IEC62056-61, IEC62059-32-1
IEC62056-21, IEC62056-61, IEC62059-32-1
Voltage
Rated voltage Un
Voltage range
57.7V~240V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist
0.01A
1A, 1.5A or 5A
6A or 10A
0.1%Ib
Rated Frequency Fn
50/60Hz
Accuracy
Class C/0.5S for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
10000imp/kWh;10000imp/kvarh
10000imp/kWh;10000imp/kvarh
Environment
Temperature range
Operation: -25~70℃
Storage: -40~85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib
＜2W/10VA
＜1VA
LCD Display
8 digits with configurable decimal place, backlight supported
Backup Power Supply
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy according to IEC62054-21
Communication Interface
2*RS485(RJ45 type) with power output 12V(300mA).
1*RS485(RJ45 type) for RS485 group daisy chain.
1*Optical port
1*RS485(RJ45 type) for RS485 group daisy chain.
1*Optical port
Communication Protocol
DLMS/COSEM
I/O Interface
1*Signal Input
2*Signal Outputs
1*Control Outputs
2*Signal Outputs
1*Control Outputs
Weight Of Meter
About 1.8kg

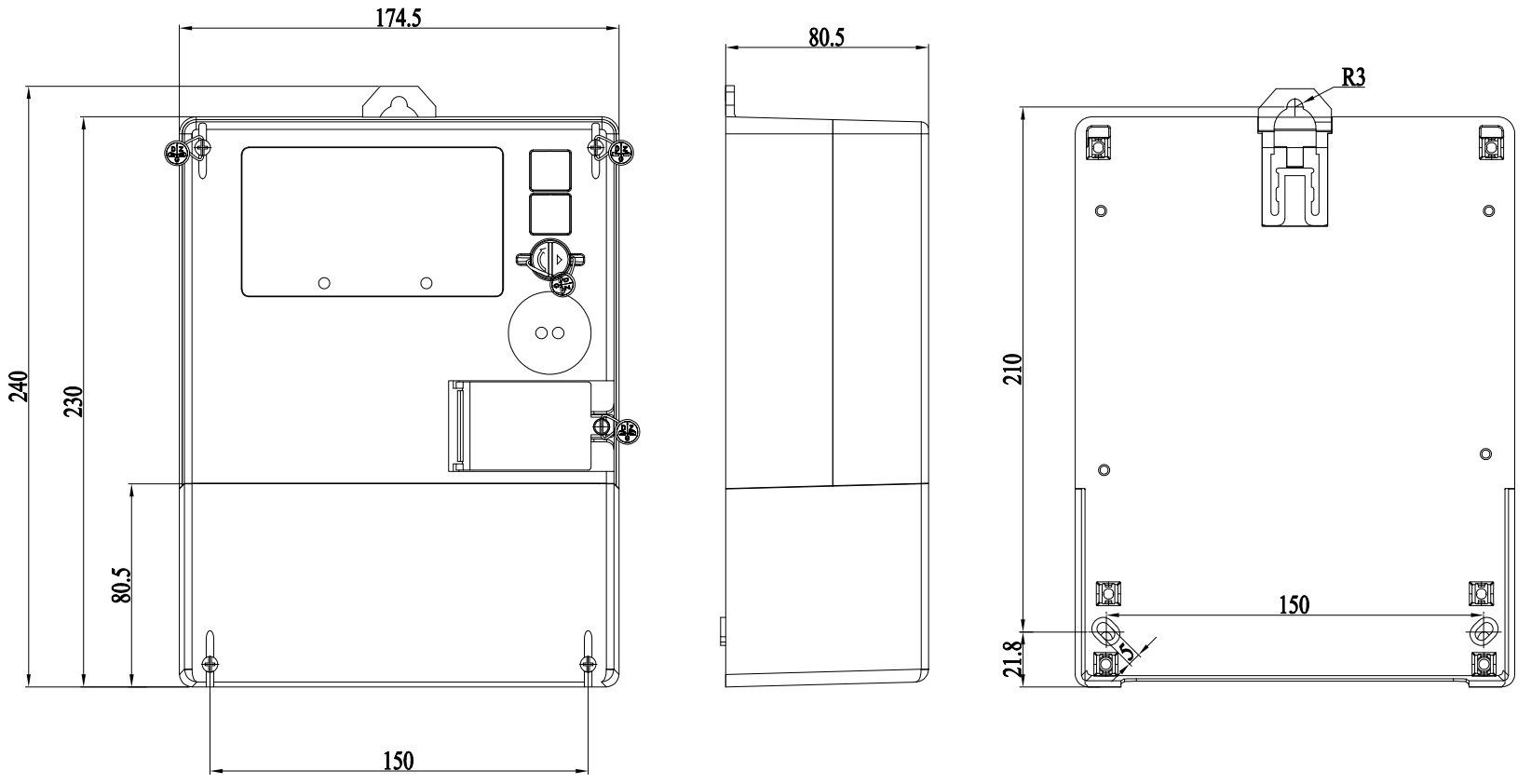

Dimension(LxWxD)
240.0 × 174.5 × 80.5mm
