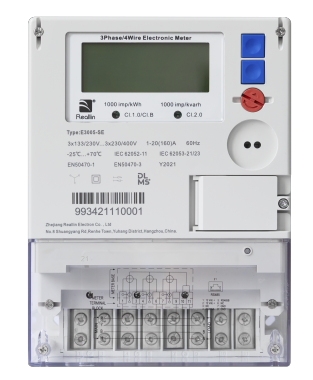

交流产品-普通电能表：E3005-SE

Active/Reactive Energy Measurement . Wide Operating Voltage Range. Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing). Provide Daily,Monthly And Load Profiles For Billing And Analysis. Expandable With External Module Connection. IEC & High Durability Test Certificates.

主要功能


Active/Reactive Energy Measurement

Wide Operating Voltage Range

Anti-Tampering Capability (Abnormality Detection, Event Logs, Sealable Casing)

Provide Daily,Monthly And Load Profiles For Billing And Analysis

Expandable With External Module Connection

IEC & High Durability Test Certificates









参数明细

                                              Specificatio E3005-SE

Type
Three Phase Four Wire Electronic Meter
Standards
IEC 62052-11, IEC 62053-21/23,IEC62056-21, IEC62056-61,
IEC62059-32-1
Voltage
Rated voltage Un
Voltage range

133 or 230V
80%Un~115%Un
Current
Minimum current Imin
Reference current Ib
Maximum current Imax
Starting current Ist

0.25A
20A
160A
0.4%Ib
Rated Frequency Fn
60Hz
Accuracy
Class B/1.0 for active; Class 2.0 for reactive
Pulsating Indicator
Pulsating (meter constant)
LED
1000imp/kWh;1000imp/kvarh
Environment
Temperature range

Operation: -25~70℃
Storage:-40~85℃
Protection Degree
IP 54
Insulation Class
II
Typical Power Consumption
Voltage circuit active/apparent power at Un
Current circuit apparent power at Ib

＜2W/10VA
＜4VA
LCD Display
8 digits with configurable decimal place, backlight supported
Backup Power Supply
Replaceable battery and Internal super capacitor
RTC
Provides RTC with clock accuracy according to IEC62054-21
Communication Interface
1*RS485(RJ45 type) with power output 12V,more than 3W
1*Optical port
Communication Protocol
DLMS/COSEM
Weight Of Meter
About 2.0kg

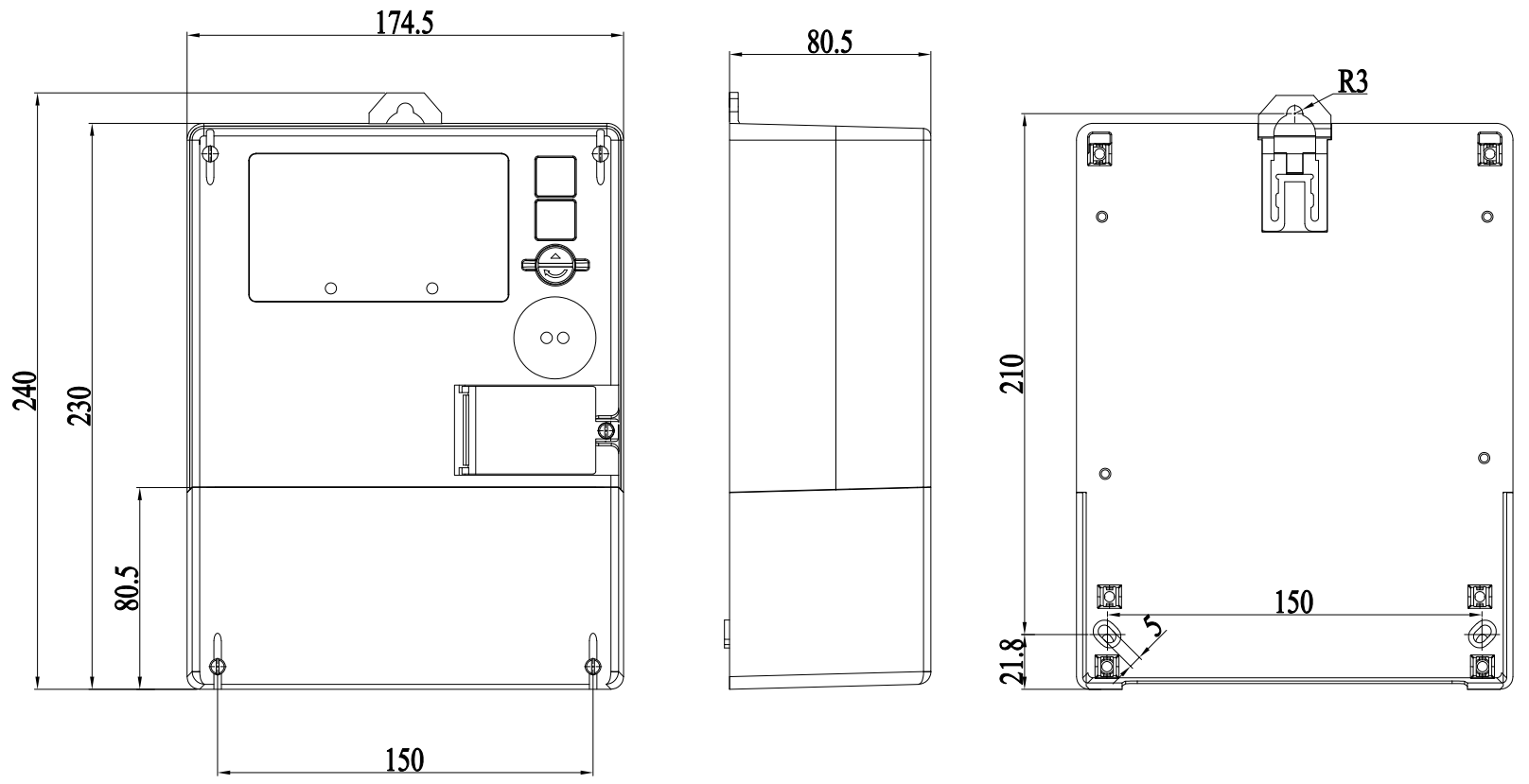

Dimension(LxWxD)
240.0 × 174.5 × 80.5mm
